In
System Programming (ISP) for ATMEL chips A step by step construction guide By
Ibrahim Kamal
Last update:
30/8/08
Supported
devices:
AT89S51, AT89S52, AT89S53,
AT89S8253, AT89S2051, AT89S4051, AVR
family (Tested on the AT89S52
and ATMEGA16L)
Programmer software: A free programmer software
can be downloaded at the end of this page
Overview
If you didn't
guess it from the title, ISP is a way to serially
program your microcontroller, while it resides in its place,
in other words, without removing the chip from your board.
Whether you're just
starting in the ATMEL microcontrollers, or you're familiar
with it, ISP (In System Programming) will provide you a
simple and affordable home made solution to program and
debug your microcontroller based project.
Sometimes, ISP can become very useful, when adjusting some
delays, frequencies or any other values that you would intend
to find by trial and error.. a process that would otherwise
take too much time.
1.How
does ISP works?
Normally,
the flash memory of an ATMEL microcontroller is programmed
using a parallel interface, which consists of sending the
data byte by byte (using 8 independent lines for the data,
and another bunch of lines for the address, the control
word and clock input). On the other hand ISP is performed
using only 4 lines, and literally, data is transferred
through 2 lines only, as in a I2C interface, where
data is shifted in bit by bit though
Pins
used for ISP
MOSI: data input
MISO: data output
SCK: clock input
RESET: used to activate the serial Programming
MOSI line,
with a clock cycle between each bit and the next (on the SCK
line). MISO line is used for reading and for code verification,
it is only used to output the code from the FLASH memory of the
microcontroller.
The RST pin, which is normally used to reset
the device, is also used to enable the 3 pins (MOSI,
MISO and SCK) to be used for
ISP simply by setting RST to HIGH (5V), otherwise
if RST is low (0V), your program start running
and those three pins, are used normally as P1.5, P1.6 and P1.7.
Here is ISP Programming sequence as described in
ATMEL datasheets:
"The Code memory array can be programmed using
the serial ISP interface while RST is pulled to VCC. The
serial interface consists of pins SCK, MOSI (input) and
MISO (output). After RST is set high, the Programming Enable
instruction needs to be executed first before other operations
can be executed. Before a reprogramming sequence can occur,
a Chip Erase operation is
required.
The Chip Erase operation turns the content of every memory
location in the Code array into FFH.
Either an external system clock can be supplied at pin XTAL1
or a crystal needs to be connected across pins XTAL1 and
XTAL2. The maximum serial clock (SCK) frequency should be
less than
1/16 of the crystal frequency. With a 33 MHz oscillator
clock, the maximum SCK frequency is 2 MHz. "
Pins used for ISP
This is as deep as i got in the ISP process, as i am using a ready
made software that will handle the transfer protocol. some more
detailed information about the ISP functioning can be found at
www.8052.com and at
www.avrfreaks.net. but this is all you need to know
to build and use this extra simple programming device.
Now that you know some theory about the ISP, you should be ready
to build the hardware interface. As you will soon discover, it
maybe the simplest circuit that will find in this web site!
2.The
circuit
This circuit is a modification from an
original deign of Jerry Meng,
and it is compatible with the
software/cable proposed at www.aec-electronics.co.nz
Important
note: The schematic above indicates
a 74LS08 IC, and I did build the programmer
with a 74LS08 IC. However, using a 74HC08,
or even better a 74HCT08 IC would be much
safer, will give you a better performance and allow you
to use a longer cable.
The circuit almost talks for itself, the only part that may need
some explanation, is the 4 AND gates. Connecting both 2 inputs
of the AND gates as shown makes it act like a buffer,
to protect the parallel port. (Shortly, a buffer is a device that
will isolate 2 circuits)
Then, the pins P1,P2,P3,P4 have to be connected respectively to
P1.5, P1.6, P1.7 and RST in the microcontroller.
Finally, J1 is the connection to the computer parallel port.
3.The
PCB and the housing
I used an old parallel printer cable, and the
whole circuit is mounted inside the the connector plastic box.
A glance at this pictures may be enough to understand
how the PCB is mounted and welded to the parallel
port connector. To achieve this, some precision have
to be taken in account when
producing the PCB.
Note than PINs 14 to 25 of the parallel port are on the
Components side of the board, and thus cannot be welded..
but luckily, from all those pins we only need the Ground
(0V) (pins 18 to 25), which were all connected to the board,
simply through a single jumper wire. (you can notice it,
it's the orange wire in the shown picture at the left) Below
is another overall view of the device before being encapsulated.
Also notice in the microcontroller end of the cable, which
is simple the female connector of standard pin header. I
wont give more details about this part, i'll leave it to
your imaginations! The important thing is to solder the
cable to a secure connector instead of leaving the wires
free to touch each others, which could
cause some damage the the buffer circuit.
here
is a shot of the device in action. the picture may not be
as clear as in reality, but i found the High Brightness
LED to be cooler than what i've imagined..
Here
is a shot of some other ISP programmers I made for some
of my friends.
4.Connecting
the programmer to the microcontroller
Many
visitors were confused on how to connect this programmer to the
microcontroller. Well, in general, ISP is made to program the
microcontroller while it resides in its place, so all the standard
connection for the microcontroller to run properly are to be
made.
As Mr Sarma - a regular visitor, reviewer and a friend - suggested,
here are some examples showing how to connect the programmer to
different types of microcontrollers:
1- Connecting the programmer to an AT89S52
1- Connecting the programmer to an ATMEGA16L
Note that with the ATMEGA AVR family, You don't need to add a
crystal resonator, as those chips contains an internal resonator,
making it ready to use simply by connecting the 5V and GND supply
rails.
5.The
programmer software

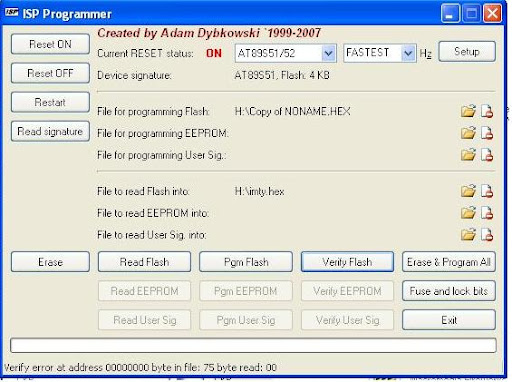

This is the piece of software that will
take the HEX file generated by whatever compiler you are using,
and send it - with respect to the very specific ISP transfer protocol
- to the microcontroller.
The software I am proposing was designed to be compatible with
a multitude of ISP programming cables. in most of cases, all the
difference is the pins used on the parallel port to
perform
the data transfer. The only thing you need to do is to go
through 'Setup', and chose the 'AEC ISP' cable pinout. once
chosen, you will notice that it matches the circuit on this
page.
If you have more than one parallel port (never seen this
a lot..) chose the one to which the programmer is connected.
The link to download the software is at the end of this
article.
Setting up the software to be used with
the programmer hardware
6.
User contributions
Khizer
Naeem, a student from International Islamic
University of Islamabad, shares his experience in
building the ISP programmer found on this page.
His various trials and hard work paid out when he
figured out a way of enhancing this ISP programmer.
I thank him for sharing his work, quoted is Khizer
Naeem little story: "I was working on the
isp programmer for more than three weeks after i
get it working. I have learned a lot of things and
would like to bring in your kind notice.
Khizer
Naeem
I
have made five attempts of making the isp programmer given
on your site, one on bread board two on vero
boards, and two on single sided PCBs. All of these
were having the same problem. They didn't worked
the most of the time,like they worked 1:100 attempts to
program the microcontroller. Some time the signature was
faulty, sometimes good. Some time the Writing works and
the Verifying fails and most of the times writing fails.
I tried shortening the cable and even i made a isp programmer
in which the ZIF socket was mounted on the parallel port
side board(no cable LOL)
I then tried making the Asim khan's ISP programmer, its
result were worst, "No response from the microcontroller".I
then build the Asim khan's SPI stand alone programmer the
problem was same, Working some times and failing most of
the time!
I was
about to give up and even arranged the few bucks to
purchase a branded universal programmer, when i struck
up with an idea that brought me back to life in the
programmer business.
I usually used the DB-25 Right angle PCB mount socket.
I always common grounded the 18~25 pin of the parallel
port with my circuit. This is not enough! You must
also ground your circuit with the aluminum cover of
the socket which is attached internally to the foil
of the parallel cable. I am talking about the cover
that surrounds the pins of the male DB-25 socket.
Doing this trick, I came back to life and all of my
programmers that won't work previously started working
( Now i am having a dozen of working programmer LOLs)"
Eddie
Wandy, a electronics hobbyist among
us at ikalogic.com build his programmer based on
the data provided on this page, along with his creative
touch...
He used USB power supply to power the programmer,
and used high quality network cable to connect the
programmer to a PC's prallel port. He used a cable
as long as 1.3 m. "This cable is rated to 550Mhz
to provide additional performance and bandwidth
over and above the basic requirements for data communication..
this rj45 UTP Tech. cable cant be cut easily like
others communication cable, its more heavy duty
because the copper inside covered by PVC, not rubber.."
says Eddie Wandy.
Eddie
Wandy
His
configuration is the following: -12MHz Crystal (oscillator)
-22nF ceramic cap (decoupling)
-220uf 16vdc (to refilter and stablelize power
supply came from USB port)
Now if your programmer doesn't work, don't
panic and check the following:
1- Make sure the cable is no longer than 50 cm (though i made
it work with a 1meter cable..) long cables tend to increase noise
interference especially with TTL devices.
2- Try more than one
device, I had two AT89S52 which which had their ISP port
damaged somehow, as they could be programmed through the
parallel programmer and functioned correctly, but wouldn't
let me to program them through ISP
3- If you can read a hex file, which was written by any
other programmer , but you CANNOT Write another HEX file
using the ISP programmer, this is - without a doubt - caused
by a damaged chip.
4- post your question in the forum below, if the solutions
above didn't work.
Download
the zip file for this project
includes the schematic and the printed circuit
board in expressPCB format. [note: i use ExpressPCB(FREEWARE)
to design the schematics and the PCB]
I tried this a week ago and it worked fine. I bought a DB25 Male connector and soldered wires to the required pins alone. Then connected these wires to the appropriate pins of the 89S52 fixed on a breadboard with the necessary power supply, caps, crystal, etc., without a buffer in between. It's risky to do without a buffer but it will work. You might damage the parallel port if you shorted its pins inadvertently. So check to make sure that none of the pins in the DB25 are shorted together (except the ground pins 18-25) before connecting to the PC's port. My wires were single strand of length less than 25cm each. I used a 11.0592MHz crystal but programmed at a very low 32KHz rate only. Remember to connect the metal case surrounding the DB25 pins also to the common ground terminal, to which the 18-to-25 pins of DB25, the supply ground and the ground pin of 89S52 are connected. Add a buffer in between the DB25 pins and the 89S52 pins if you like to play it safe. Thanks to Ibrahim Kamal for such a simple ISP.
Even without a PCB and stuff, you just need a DB25 Male connector with wires soldered to pins 6,7,8,10; a common one from pins 18-25, and a wire connected to the metal case around the pins. Your ISP is ready. Try programming at low rates (32KHz) and use wires no longer than 50cm from the parallel port. It'll work for sure. Again, don't blame me if you didn't use a buffer in between and burnt your port. Risk it or use a buffer. You can easily build this on a breadboard in less than an hour if you have all the stuff you need.
Quoting jibu_thomas: Hi, once again all went right i was able to program it to interface with rs232 and it worked. But ic was not being recognized afterwards i checked the ic pins and few pins had just about 250 ohms between them i think it is damaged is it?
Please help me a few doubts:
1.Can I hot plug parallel port? my Os(Win Xp) had such a option in device manager thats why
2.Should i give power to IC and switch on computer or switch on computer and give power to IC?
3.Can I remove the IC when power in ciruit is switched On?
I am using 78HC08 as buffer will it be better if I use 74HCT541 or 74HC245?
while interfacing Rs232, did you use any MAX232 chip or directly connected to DB9 socket? if so, did you limit the incoming voltage level not to exceed Vcc (DB9 pins output almost +/-15V signals and we need to condition them to suite the 89S5x,by other means, if you don't use MAX232) 1. i didn't have such problem, but i generally plug the chip after the com port is established and before i start programming. 2.computer would be first ON. 3. after removing the Vcc to the chip, YES.
after all we need a buffer. when a simple 74HC08 is serving , let us manage. Rest is only your taste for variety.
there are occasions where I used port pins direct to controller without any buffer (taking risk on myself).
Having said all that, instead of telling few pins, you could be specific which pin to which other pin, it would help cross check with a good chip. next time you may take necessary precaution to see that 15V com port signals do NOT land on the 89S5x pins.
Quoting akshay: Hi... Will the abouve circuit work on a bread board? or are there any problems associated with stray capacitances on the bread board? The chip was identified once(though i couldnt write anything onto it as it gave some write error) but the rest of the times, it simply didnt recognize the chip atall...
Itried and it works At the time of programming you need not have the same crystal that you need while working. The serial programming rate is 1/16th of the crystal used . as such bread board capacitance should not be a problem. I myself remember to have programmed few occasions. Sarma
Hi... Will the abouve circuit work on a bread board? or are there any problems associated with stray capacitances on the bread board? The chip was identified once(though i couldnt write anything onto it as it gave some write error) but the rest of the times, it simply didnt recognize the chip atall...
Hi, once again all went right i was able to program it to interface with rs232 and it worked. But ic was not being recognized afterwards i checked the ic pins and few pins had just about 250 ohms between them i think it is damaged is it?
Please help me a few doubts:
1.Can I hot plug parallel port? my Os(Win Xp) had such a option in device manager thats why
2.Should i give power to IC and switch on computer or switch on computer and give power to IC?
3.Can I remove the IC when power in ciruit is switched On?
I am using 78HC08 as buffer will it be better if I use 74HCT541 or 74HC245?
Quoting RFdata: Hi, is the 74LS08 really necessary? Does the parallel port supply supply all the current nedded to the at?
tanks
It is better to have it and why not 74HC08 instead of LS08? Afterall we need to protect the parallel port from the hobby level handling, and from inadvertent shortcircuitss etc.
Thankyou, Shama, for your help. This time i connected, the device was not being recognized... i think i made some erroraneous connection. I ll try doing it again properly according to what you said and reply.
Quoting akshay: Hi Ika, I am new to this site and wish to thank you for providing such easy schematics for the programmer. I tried making it but faced a little problem. After connecting the board, the software was able to recognize the chip(i clicked read signature button). However, when i tried opening the file and clicking erase and program, the error message appearing at bottom saying 'Not able to write data at 00000000h write byte: 08h read byte ffh'. Can you help me with this. i used an 89s51 chip.
Did you, AKshay, 1. provide 5V supply at pin31 of the chip? 2. please do connect the Vss (ground of the programming power supply to the metal body of the DB25 socket also. 3. Provide a 0.1uF disc cap across the Controller chips Vdd and Vss pins. 4. see that your power supply is free from Noise . 5. ensure that the electrolytic cap used for Reset is not leaky. 6. set the programming speed at less than 1/16th of the crystal you have used for programming.(this is done in software) With above steps you should succeed, AKshay, All the best.
Hi Ika, I am new to this site and wish to thank you for providing such easy schematics for the programmer. I tried making it but faced a little problem. After connecting the board, the software was able to recognize the chip(i clicked read signature button). However, when i tried opening the file and clicking erase and program, the error message appearing at bottom saying 'Not able to write data at 00000000h write byte: 08h read byte ffh'. Can you help me with this. i used an 89s51 chip.
Quoting jibu_thomas"]Hi I am Jibu and thanks for this page its of great use , i have a small question when i program at 4Mhz it doesnt get programmed but at 32 KHz it gets programmed i am using a 3 Mhz and 4Mhz alternatively. But there should not be any problem in running the circuit at 4 Mhz right? also i use 89s52 and with the crystal i use 15pF capacitors my cable is approx. 35 cm. and also two 9volt batteries and 7805 IC for power supply(i have not filtered my powersupply)
One more question i want to separate my parallel port and microcontrollers ground. How do I do it? when I try to do so the microcontroller does not get recognized please help me
Hi... my name is jamelectric maybe the current of batteris that you use it to supply your circuit is not enough to give you an activative microcontroller. for the ground case you must connect the ground of parallel port to the ground of micro
Hi I am Jibu and thanks for this page its of great use , i have a small question when i program at 4Mhz it doesnt get programmed but at 32 KHz it gets programmed i am using a 3 Mhz and 4Mhz alternatively. But there should not be any problem in running the circuit at 4 Mhz right? also i use 89s52 and with the crystal i use 15pF capacitors my cable is approx. 35 cm. and also two 9volt batteries and 7805 IC for power supply(i have not filtered my powersupply)
One more question i want to separate my parallel port and microcontrollers ground. How do I do it? when I try to do so the microcontroller does not get recognized please help me
All content on this site
is provided as is and without any guarantee of any kind. We
cannot be held responsible for any errors, omissions, or damages
arising out of use of information available on this web site.
Overview
The circuit almost talks for itself, the only part that may need
some explanation, is the 4 AND gates. Connecting both 2 inputs
of the AND gates as shown makes it act like a buffer,
to protect the parallel port. (Shortly, a buffer is a device that
will isolate 2 circuits)
Khizer
Naeem
Eddie
Wandy
